ThunderSky Winston

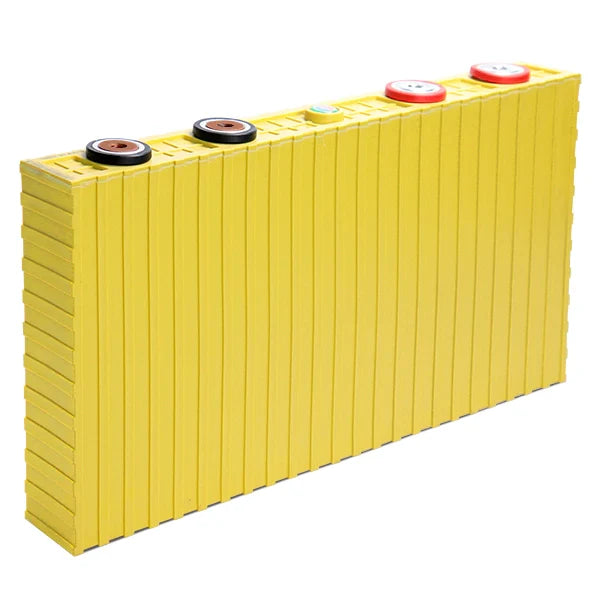

WINSTON TSWB-LYP700AHA , 3.3V, 700Ah
WINSTON TSWB-LYP700AHA , 3.3V, 700Ah
Couldn't load pickup availability
Original ThunderSky Winston part number: WB-LYP700AHA, TSWB-LYP700AHA
Recommended initial and subsequent charging is to 3.65 V.
The minimum voltage is 2.5 V.
Maximum discharge current is 3C continously.
Operating temperature -45°C up to 85°C (discharging)
Energy density is 107 Wh/kg
MOQ - 2-50 PRICE SHOWN IS FOR 1 X BATTERY WHOLESALE
All other Countries - Please contact us for product prices and shipping costs
These battery cells are suitable for all traction applications including electric vehicles. Fully complies also for stationary applications - such as energy storage.
There is no Selfdischarging effect.
Can be recharged at any state of discharge - no memory effect
LiFePO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen.
All cells are supplied new directly from the manufacturer.
Original Woodenbox contains 4 cells is 710*386*446mm large and weights 95kg.
| Weight (kg) | 21 |
| Connector | M14 |
| Height (mm) | 306 |
| Width (mm) | 627 |
| Depth (mm) | 67 |
| Nominal Voltage (V) | 3.3 |
| Capacity (Ah) | 700 |
| Cycle Life | 70% DOD (>7000) |
| Internal Resistance (mOhm) | <0.25 |
| Max discharge current (A) | 7000 |
| Optimal discharge current (A) | 350 |
| Max charging current (A) | 2100 |
| Optimal charging current (A) | 350 |
-------------------------------------------------------------------------------------------
