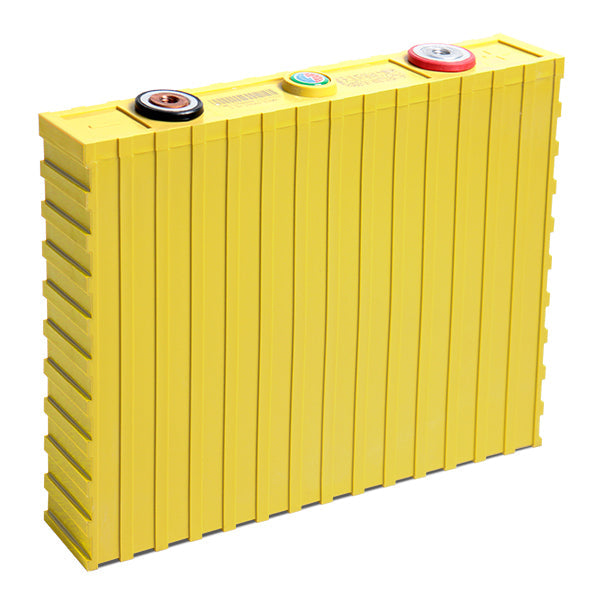

WINSTON TSWB-LYP260AHA , 3.3V, 260Ah
WINSTON TSWB-LYP260AHA , 3.3V, 260Ah
Regular price
£390.00 GBP
Regular price
Sale price
£390.00 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Original ThunderSky Winston part number: WB-LYP260AHA, TSWB-LYP260AHA
Recommended initial and subsequent charging is to 3.65 V.
The minimum voltage is 2.5 V.
Maximum discharge current is 3C continously.
Operating temperature -45°C up to 85°C (discharging)
Energy density is 95,97 Wh/kg
All other Countries - Please contact us for product prices and shipping costs
| Weight (kg) | 8.7 |
| Connector | M12 |
| Height (mm) | 283 |
| Width (mm) | 362 |
| Depth (mm) | 56 |
| Nominal Voltage (V) | 3.3 |
| Cycle Life | 70% DOD (>7000) |
| Internal Resistance (mOhm) | <0.3 |
| Capacity (Ah) | 260 |
| Max discharge current (A) | 2600 |
| Optimal discharge current (A) | 130 |
| Max charging current (A) | 780 |
| Optimal charging current (A) | 130 |
-------------------------------------------------------------------------------------------
SEE ALSO www.onestopyachtuk.com and www.thunderskywinston.uk
------------------------------------------------------------------------------------------
