ThunderSky Winston WB-12V90AH-SET

ThunderSky Winston WB-12V90AH-SET (1.08kWh, 12V)

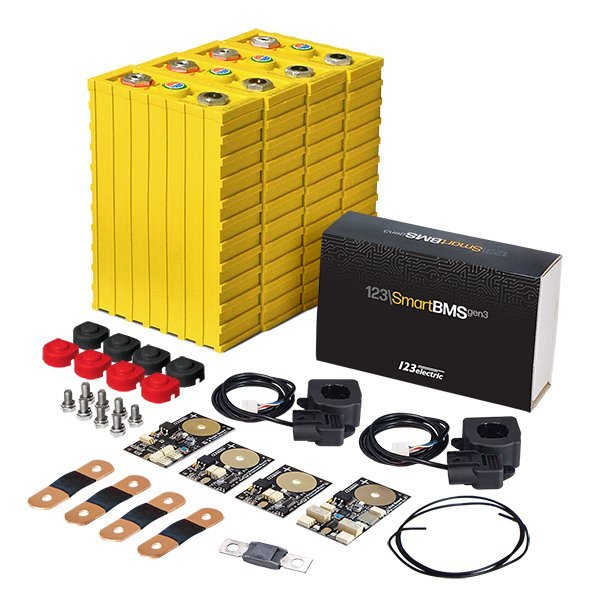

Winston 1.08 kWh LiFeYPO4 Kit (12 V) with 90Ah Cells + BMS Mobile Monitoring.
High Energy Efficient Lithium Cell/Kit, original Winston Battery product with LiFePO4 (LiFeYPO4) technology.

Kit contents

• Model: WB-LYP90AHA
• Capacity: 90 Ah
• Original ThunderSky Winston designation: WB-LYP090AHA, TSWB-LYP090AHA
• Recommended Initial and Follow-Up Charges: 3.65V
• Minimum Voltage: 2.8 V
• Maximum voltage: 3.8 V
• Maximum Discharge Current: 3C continuously
• Operating temperature: -45 to +85 °C (discharge)
• Energy density: 96 Wh/kg

These battery cells are suitable for all traction applications, including electric vehicles. They are also fully suitable for stationary applications - for example as energy storage.
There is no self-discharge.
Can be recharged in any discharge state - no memory effect.
LiFePO4 is a very safe technology, it does not spontaneously combust, it does not react with moisture or oxygen.
All cells are supplied new directly from the manufacturer.
The original wooden box contains 18 cells, has dimensions of 647 × 458 × 360 mm and weighs 63 kg.

BASIC SPECIFICATIONS

Technology: Lithium (LiFeYPO4/LiFePO4)
Rated voltage: 3.3 V
Operating voltage (under load): 3.0 V
Capacity: 90 Ah
Operating temperature range: -45 to +85 °C
Weight: 3 kg
Dimensions: 218 × 143 × 61 mm

Module size when using 90Ah cells

1 article – Capacity: 270 Wh / Depth 61 mm / Weight: 3 kg
, 4 cells (12 V) - Total capacity: 1080 Wh / Depth: 244 mm / Weight: 12 kg
, 8 cells (24 V) - Total capacity: 2160 Wh / Depth: 488 mm / Weight: 24 kg
, 16 cells (48 V) - Total capacity: 4320 Wh / Depth: 976 mm / Weight: 48 kg

Balance and protection electronics
An important part of any battery module is the balance and protection electronics. The most common solution is the BMS123 Smart BMS123. This advanced LiFePO4 battery monitoring and management solution supports Bluetooth connectivity to your phone, iPad, tablet, or other device. A free app for Android and iOS is included.
