ThunderSky Winston WB-12V700AH-SET

ThunderSky Winston WB-12V700AH-SET (8.4kWh, 12V)

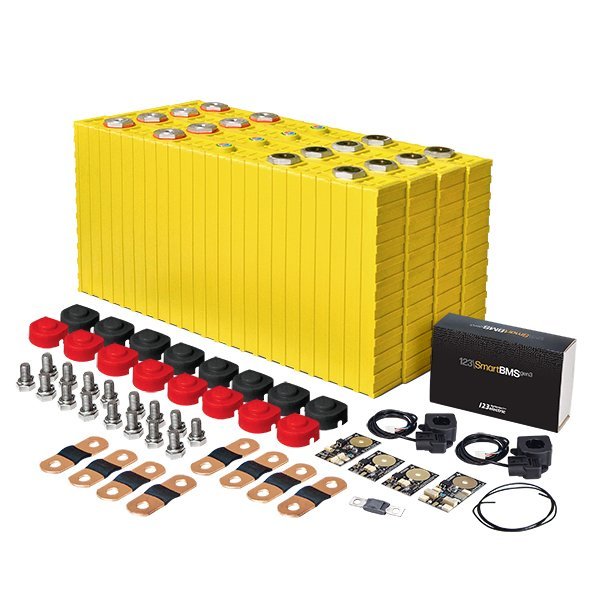

Winston 8.4 kWh LiFeYPO4 Kit (12 V) with 700Ah Cells + BMS Mobile Monitoring.
High Energy Efficient Lithium Cell/Kit, original Winston Battery product with LiFePO4 (LiFeYPO4) technology.

Kit contents

• Model: WB-LYP700AHA
• Capacity: 700 Ah
• Original ThunderSky Winston designation: WB-LYP700AHA, TSWB-LYP700AHA
• Recommended Initial and Follow-Up Charges: 3.65V
• Minimum Voltage: 2.8 V
• Maximum voltage: 3.8 V
• Maximum Discharge Current: 3C continuously
• Operating temperature: -45 to +85 °C (discharge)
• Energy density: 107 Wh/kg

These battery cells are suitable for all traction applications, including electric vehicles. They are also fully suitable for stationary applications - for example as energy storage.
There is no self-discharge.
Can be recharged in any discharge state - no memory effect.
LiFePO4 is a very safe technology, it does not spontaneously combust, it does not react with moisture or oxygen.
All cells are supplied new directly from the manufacturer.
The original wooden box contains 4 cells, has dimensions of 710 × 446 × 386 mm and weighs 95 kg.

BASIC SPECIFICATIONS

Technology: Lithium (LiFeYPO4/LiFePO4)
Rated voltage: 3.3 V
Operating voltage (under load): 3.0 V
Capacity: 700 Ah
Operating temperature range: -45 to +85 °C
Weight: 21.6 kg
Dimensions: 627 × 306 × 67 mm

Module size when using 700Ah cells

1 article – Capacity 2.1 kWh / Depth 67 mm / Weight 21.6 kg
4 cells (12 V) - Total capacity 8.4 kWh / Depth 268 mm / Weight 86.4 kg
8 cells (24 V) - Total capacity 16.8 kWh / Depth 536 mm / Weight 172.8 kg
16 cells (48 V) - Total capacity 33.6 kWh / Depth 1072 mm / Weight 345.6 kg

Balance and protection electronics
An important part of any battery module is the balance and protection electronics. The most common solution is the BMS123 Smart BMS123. This advanced LiFePO4 battery monitoring and management solution supports Bluetooth connectivity to your phone, iPad, tablet, or other device. A free app for Android and iOS is included.
