ThunderSky Winston WB-12V50AH-SET

ThunderSky Winston WB-12V50AH-SET (600Wh, 12V)

Winston 600Wh LiFeYPO4 Kit (12V) with 50Ah Cells + BMS Mobile Monitoring.
High Energy Efficient Lithium Cell/Kit, original Winston Battery product with LiFePO4 (LiFeYPO4) technology.

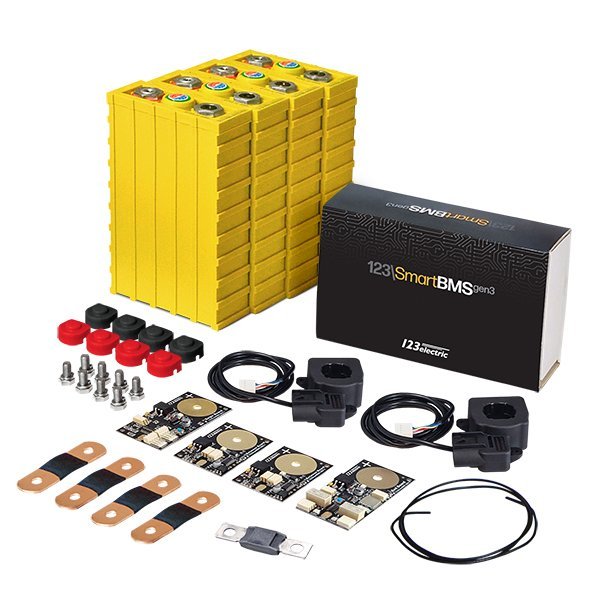

This bundle consists of:

•  4x Thunder Sky Winston TSWB-LYP050AHA LiFeYPO4 (3.3V/50Ah)
•  1x 123electric BMS123 Smart Gen3 - complete set (4 cells) with Bluetooth 4.0
•  4x Winston Battery Cell Terminal Cover, Size 1, Red
•  4x Winston Battery Cell Terminal Cover, Size 1, Black
•  4x WINSTON terminal connector for TSWB-LYP50AH, LYP40AH
•  1x Victron MIDI Fuse 60A / 32V

Kit contents

• Model: WB-LYP50AHA
• Capacity: 50 Ah
• Original ThunderSky Winston designation: WB-LYP050AHA, TSWB-LYP050AHA
• Recommended Initial and Follow-Up Charges: 3.65V
• Minimum Voltage: 2.8 V
• Maximum voltage: 3.8 V
• Maximum Discharge Current: 3C continuously
• Operating temperature: -45 to +85 °C (discharge)
• Energy density: 103 Wh/kg

These battery cells are suitable for all traction applications, including electric vehicles. They are also fully suitable for stationary applications - for example as energy storage.
There is no self-discharge.
Can be recharged in any discharge state - no memory effect.
LiFePO4 is a very safe technology, it does not spontaneously combust, it does not react with moisture or oxygen.
All cells are supplied new directly from the manufacturer.

BASIC SPECIFICATIONS

Technology: Lithium (LiFeYPO4/LiFePO4)
Rated voltage: 3.3 V
Operating voltage (under load): 3.0 V
Capacity: 50 Ah
Operating temperature range: -45 to +85 °C
Weight: 1.6 kg
Dimensions: 183 × 115 × 47 mm

Module size when using 50Ah cells

1 article – Capacity: 165 Wh / Depth 47 mm / Weight: 1.6 kg
, 4 cells (12 V) - Total capacity: 660 Wh / Depth: 188 mm / Weight: 6.4 kg
, 8 cells (24 V) - Total capacity: 1320 Wh / Depth: 376 mm / Weight: 12.8 kg
, 16 cells (48 V) - Total capacity: 2640 Wh / Depth: 752 mm / Weight: 25.6 kg

Balance and protection electronics
An important part of any battery module is the balance and protection electronics. The most common solution is the BMS123 Smart BMS123. This advanced LiFePO4 battery monitoring and management solution supports Bluetooth connectivity to your phone, iPad, tablet, or other device. A free app for Android and iOS is included.

Common Connection Diagrams for BMS & SBM
Demonstration of BMS123 connection including charger, appliance and increasingly important fuses and switches.

SBM is a simple solution offering basic protection, the diagram shows a version with 16 cells connected to the charger and fuses.

Winston cell wiring produces cells with an easily assembled square shape, the terminals are made on screws allowing simple installation with a wrench.

An important part of any battery module is the connection between the cells. Original copper connectors are made of several thin layers, which ensures ideal flexibility and conductivity.
Before assembly, do not forget to clean the terminals and connectors from oxidation (with sandpaper or similar paper). Oxidized contacts can have very high resistance and cause the battery to become unbalanced.
A cheap solution is plastic caps, which prevent unwanted short-circuiting and make it easier to mark plus and minus (red and black colors are available).
