ThunderSky Winston WB-12V400AH-SET

ThunderSky Winston WB-12V400AH-SET (4.8kWh, 12V)

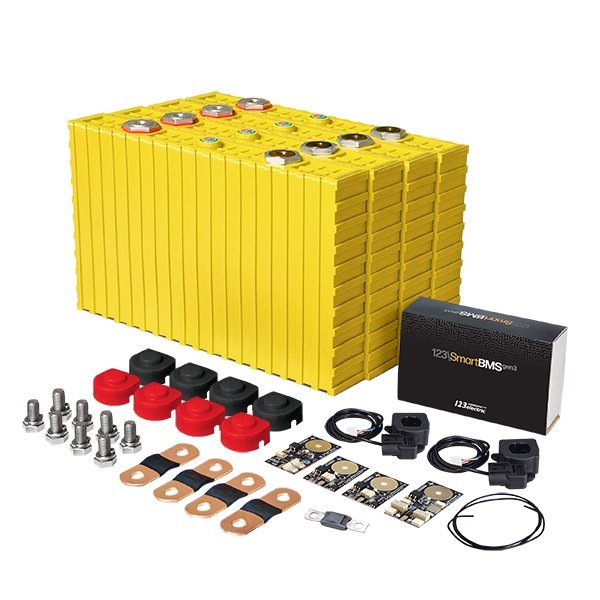

Winston 4.8 kWh LiFeYPO4 Kit (12 V) with 400Ah Cells + BMS Mobile Monitoring.
High Energy Efficient Lithium Cell/Kit, original Winston Battery product with LiFePO4 (LiFeYPO4) technology.

Kit contents

• Model: WB-LYP400AHA
• Capacity: 400 Ah
• Original ThunderSky Winston designation: WB-LYP400AHA, TSWB-LYP400AHA
• Recommended Initial and Follow-Up Charges: 3.65V
• Minimum Voltage: 2.8 V
• Maximum voltage: 3.8 V
• Maximum Discharge Current: 3C continuously
• Operating temperature: -45 to +85 °C (discharge)
• Energy density: 93.43 Wh/kg

These battery cells are suitable for all traction applications, including electric vehicles. They are also fully suitable for stationary applications - for example as energy storage.
There is no self-discharge.
Can be recharged in any discharge state - no memory effect.
LiFePO4 is a very safe technology, it does not spontaneously combust, it does not react with moisture or oxygen.
All cells are supplied new directly from the manufacturer.
The original wooden box contains 6 cells, has dimensions of 543 × 509 × 425 mm and weighs 90 kg.

BASIC SPECIFICATIONS

Technology: Lithium (LiFeYPO4/LiFePO4)
Rated voltage: 3.3 V
Operating voltage (under load): 3.0 V
Capacity: 400 Ah
Operating temperature range: -45 to +85 °C
Weight: 13.5 kg
Dimensions: 461 × 285 × 65 mm

Module size when using 400Ah cells

1 článek – Kapacita 1,2 kWh / Hloubka 65 mm / Hmotnost 13,5 kg
4 články (12 V) – Celková kapacita 4,8 kWh / Hloubka 260 mm / Hmotnost 54 kg
8 článků (24 V) – Celková kapacita 9,6 kWh / Hloubka 520 mm / Hmotnost 108 kg
16 článků (48 V) – Celková kapacita 19,2 kWh / Hloubka 1040 mm / Hmotnost 216 kg

Balance and protection electronics
An important part of any battery module is the balance and protection electronics. The most common solution is the BMS123 Smart BMS123. This advanced LiFePO4 battery monitoring and management solution supports Bluetooth connectivity to your phone, iPad, tablet, or other device. A free app for Android and iOS is included.
