ThunderSky Winston WB-12V130AH

ThunderSky Winston WB-12V130AH-SET (1.56kWh, 12V)

Winston 1.56 kWh LiFeYPO4 Kit (12 V) with 130Ah Cells + BMS Mobile Monitoring.
High Energy Efficient Lithium Cell/Kit, original Winston Battery product with LiFePO4 (LiFeYPO4) technology.

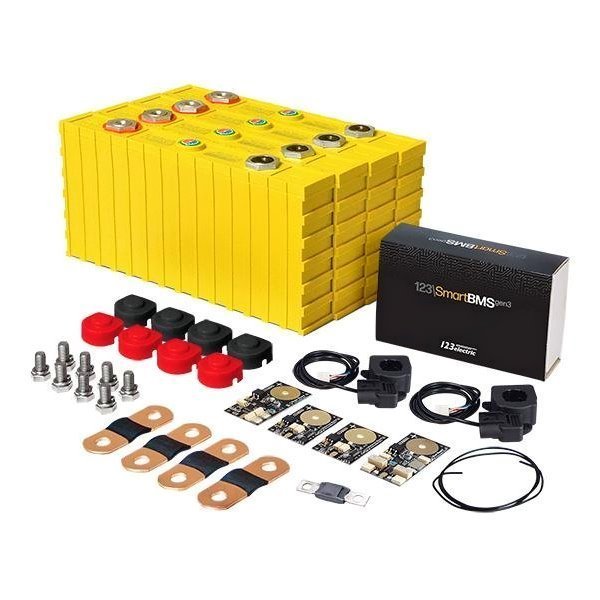

Kit contents

• Model: WB-LYP130AHA
• Capacity: 130 Ah
• Original ThunderSky Winston designation: WB-LYP130AHA, TSWB-LYP1300AHA
• Recommended Initial and Follow-Up Charges: 3.65V
• Minimum Voltage: 2.8 V
• Maximum voltage: 3.8 V
• Maximum Discharge Current: 3C continuously
• Operating temperature: -45 to +85 °C (discharge)
• Energy density: 85.8 Wh/kg

These battery cells are suitable for all traction applications, including electric vehicles. They are also fully suitable for stationary applications - for example as energy storage.
There is no self-discharge.
Can be recharged in any discharge state - no memory effect.
LiFePO4 is a very safe technology, it does not spontaneously combust, it does not react with moisture or oxygen.
All cells are supplied new directly from the manufacturer.
The original wooden box contains 9 cells, has dimensions of 583 × 446 × 400 mm and weighs 55 kg.

BASIC SPECIFICATIONS

Technology: Lithium (LiFeYPO4/LiFePO4)
Rated voltage: 3.3 V
Operating voltage (under load): 3.0 V
Capacity: 130 Ah
Operating temperature range: -45 to +85 °C
Weight: 5.2 kg
Dimensions: 360 × 177 × 55 mm

Module size when using 130Ah cells

1 článek – Kapacita 390 Wh / Hloubka 55 mm / Hmotnost 5,2 kg
4 články (12 V) – Celková kapacita 1560 Wh / Hloubka 220 mm / Hmotnost 20,8 kg
8 článků (24 V) – Celková kapacita 3120 Wh / Hloubka 440 mm / Hmotnost 41,6 kg
16 článků (48 V) – Celková kapacita 6240 Wh / Hloubka 880 mm / Hmotnost 83,2 kg

Balance and protection electronics
An important part of any battery module is the balance and protection electronics. The most common solution is the BMS123 Smart BMS123. This advanced LiFePO4 battery monitoring and management solution supports Bluetooth connectivity to your phone, iPad, tablet, or other device. A free app for Android and iOS is included.
