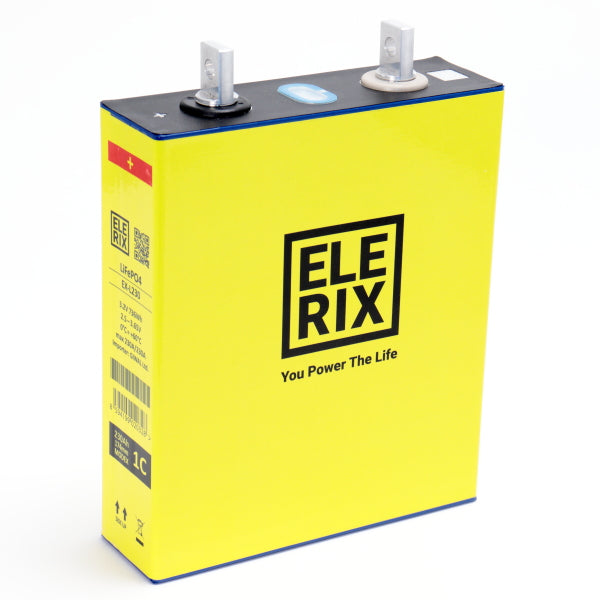

• ELERIX 3.2V 230Ah - 1C
1 1

ELERIX

ELERIX 3.2V 230Ah - 1C

ELERIX 3.2V 230Ah - 1C

£151.80 GBP
£151.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
    • High quality of production for long lifespan
    • Small and light
    • No toxic chemicals.
    • Aluminium housing (case)
    • Suitable for energy storage and solar applications

  • High Power up to 1C, 230A discharge
  • Lithium Iron Phosphate - LiFePO4
  • 3000 cycles / 15 years calender life
  • Provides high currents at peak discharge (1.5 C 345 A)
  • Plus Temperature Range, No-Frost



All other Countries - Please contact us for product prices and shipping costs

LiFePO4 is a very safe technology, with no spontaneous combustion, fire and explosion.The self discharge rate is very low. There is no memory effect – the cells can be recharged at any state of discharge.

Brand: ELERIX
Model: EX-L230
Type: LFP
Capacity: 230 Ah
Size: 174x204x54 mm
Weight: 4.1 kg
Nominal voltage: 3.2 V
Operational voltage: 2.5 V - 3.75 V
The maximum charging voltage for initial charge: 3.75 V
Maximum discharge current: 1C
Peak discharge current: 345 A (max. 3 min)
Operating temperature (discharging): -20 °C up to 60 °C
Operating temperature (charging): 0 °C up to 50 °C
VDA: VDA PLUS 174/204
Energy density: 180 Wh/kg
Tightening force of terminals up to 4 N/m



------------------------------------------------------------------------------------
