ELERIX EX-TC40/8

ELERIX EX-TC40/8

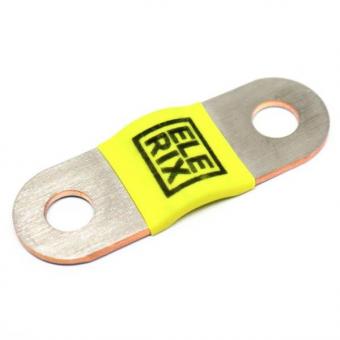

Terminal connector for ELERIX LiFePO4 lithium cells. Connector suitable for connecting ELERIX EX-L110, EX-L50D, EX-L50K, EX-L70K, EX-L160 batteries. It consists of multiple layers of copper material.

Check the dimensions of the cells and your connection requirements. See the difference in using long and short connectors:

How to calculate the maximum current for a given jumper connector?
Important parameters for the calculation are the cross-section of the jumper connector × the width of the jumper connector.

Recommended current load per 1 mm²:

• 4 A per 1 mm² –permanently
• 6 A per 1 mm² – short-term (up to 1 hour)
• 8 A per 1 mm² – peak (max. 1 minute)

The load capacity of the end connector is not linear! The load capacity decreases with the increasing cross-section of the terminal connector.

BASIC SPECIFICATIONS

Pitch: 40 mm
Dimensions: 60 × 20 × 2 mm (the middle part is 5 mm high)
Compatibility: ELERIX EX-L110, EX-L50D, EX-L50K, EX-L70K, EX-L160
Material: copper
