ELERIX EX-TC35/6

ELERIX EX-TC35/6

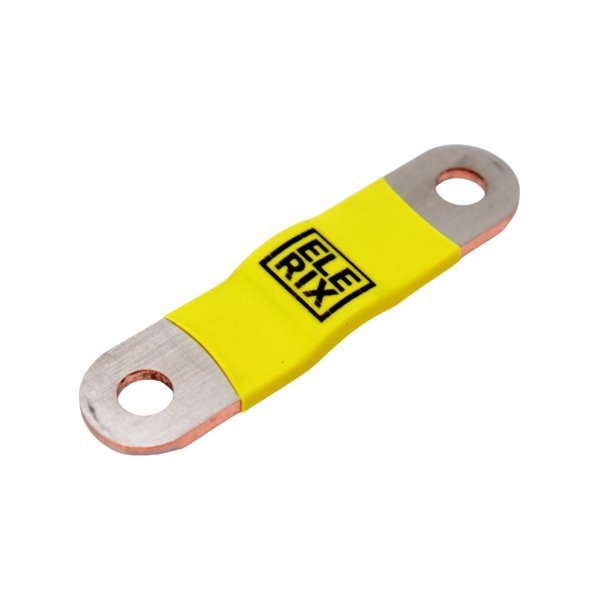

Terminal connector for ELERIX LiFePO4 lithium cells. Connector suitable for connecting ELERIX EX-L25 batteries. It consists of multiple layers of copper material.

Check the dimensions of the cells and your connection requirements. See the difference in using long and short connectors:

How to calculate the maximum current for a given jumper connector?
Important parameters for the calculation are the cross-section of the jumper connector × the width of the jumper connector.

Recommended current load per 1 mm²:

• 4 A per 1 mm² –permanently
• 6 A per 1 mm² – short-term (up to 1 hour)
• 8 A per 1 mm² – peak (max. 1 minute)

The load capacity of the end connector is not linear! The load capacity decreases with the increasing cross-section of the terminal connector.

BASIC SPECIFICATIONS

Pitch: 35 mm
Dimensions: 47 × 12 × 1 mm
Compatibility: ELERIX EX-L25
Material: Copper
