ELERIX EX-48VL100AH-SET

ELERIX EX-48VL100AH-SET (4.8 kWh, 48 V)

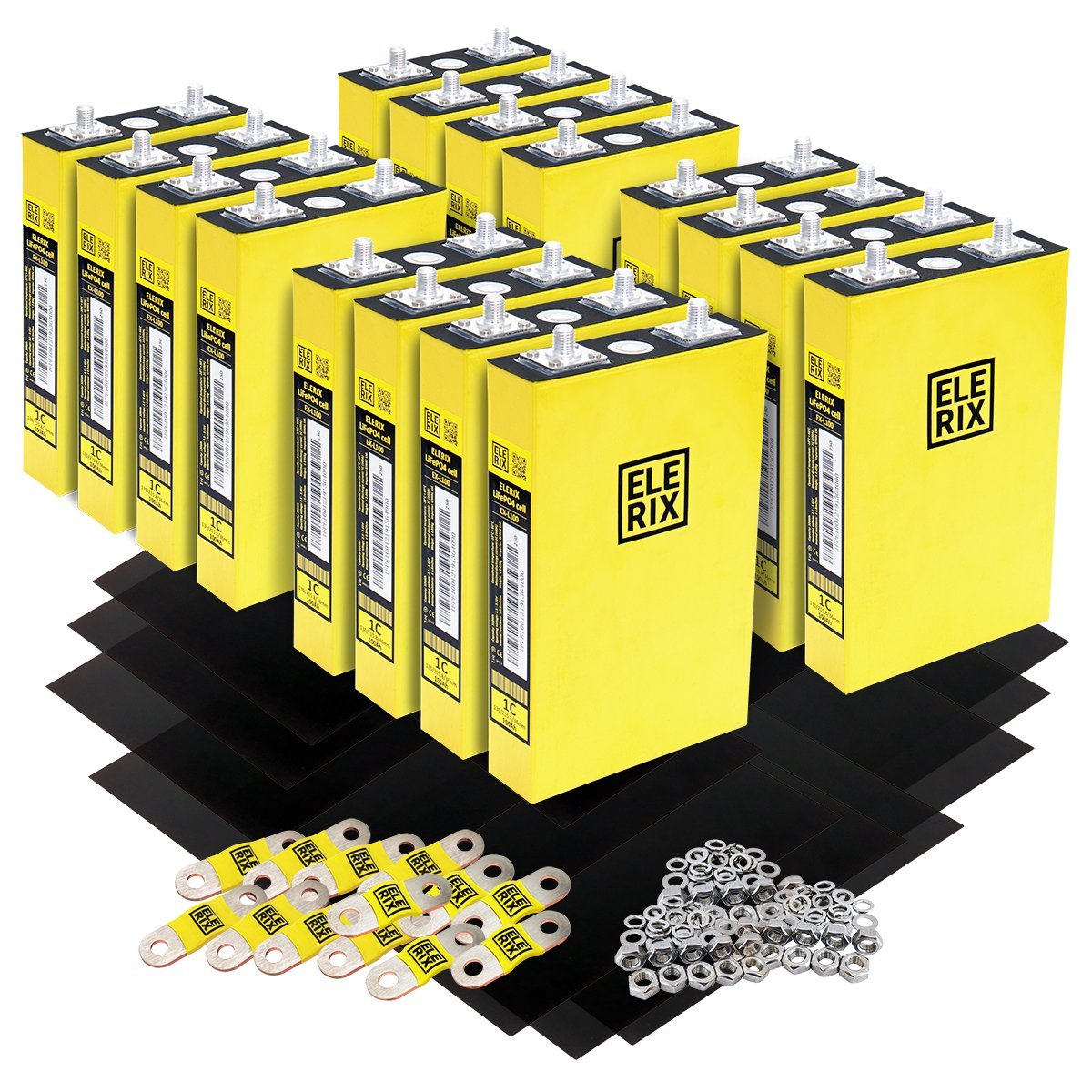

ELERIX 2.4 kWh LiFePO4 kit (48 V) with 100 Ah cells + accessories.
High Energy Efficient Lithium Cells, Elerix Battery Original Product with LiFePO4 Technology.

ELERIX EX-L100

• Aluminum Housing (Housing)
• High power up to 1C, 100 A discharge
• Provides high current at peak discharge (2C, 200 A)
• 3000 cycles / 15 years lifespan
• Free of toxic chemicals
• Suitable for electric vehicles, energy storage, solar and light applications

How to merge articles

16 cells, 48 V
Total capacity 4800 Wh / Depth 296 mm / Weight 34 kg

See another option for using long and short connectors for the EX-L100

Discharge
test: The following chart shows the discharge capacity test.

Operating instructions

• Always charge the cells to full voltage before using them for the first time.
• The initial charging must be carried out with a low current at max. 0.5C - i.e. 50 A for a 100 Ah cell.
• Protect cell terminals from contamination, damage, and short circuits.
• The cells must be monitored and protected against deep discharge and overcharging.
• Charging and discharging must take place under supervision.

Initial charge
The cells are pre-charged by the manufacturer to a preservative charge (usually 30-50%). Before using the cells for the first time, they need to be charged with a low current. The first charge should not exceed 0.5 C - e.g. for a 100 Ah cell it is 50 A.
When charging multiple cells for the first time, connect them in parallel, and the charger outputs should be connected to both ends of the parallel rows of cells.

We recommend using chargers specifically made for LiFePO4 cells. The first charge and initial balancing of the entire set is an important step in achieving a long service life.
Alternatively, you can use a regulated (laboratory) power supply as a tool for initial charging.

BASIC SPECIFICATIONS

Type: LiFePO4
Capacity: 100 Ah
Rated Voltage: 3.2 V
Operating Voltage: 2.5-3.65 V
Maximum Charging Voltage for Initial Charge: 3.65 V
Energy Density: 155 Wh/kg
Terminal Tension Force: Up to 4 N/m
Maximum Discharge Current: 1 C (max. 3 min)
Peak Discharge Current: 200 A (max. 30 sec)
Operating temperature (discharge): -20 °C to 55 °C
Operating temperature (charging): -10 °C to 45 °C
Dimensions: 216 × 130 × 36 mm
Weight: 2.05 kg
