ELERIX EX-12VL100K-AH-SET

ELERIX EX-12VL100K-AH-SET (1.2 kWh, 12 V)

ELERIX 1.2 kWh LiFePO4 Kit (12 V) with 100 Ah Cells + Accessories.
High Energy Efficient Lithium Cells, Elerix Battery Original Product with LiFePO4 Technology.

Industrial lithium cell with high energy density and 100 Ah capacity, manufactured on the basis of safe LiFePO4 technology. The battery is made of high-quality materials and does not contain any toxic chemicals, which guarantees a long service life.

LiFePO4 is a very safe technology, with no spontaneous combustion, no fire and no explosion. The self-discharge rate is very low. There is no memory effect - the cells can be recharged in any state of discharge.
All ELERIX cells are thoroughly tested in Tier 1 factories before distribution, including during production and before shipping. The ELERIX brand is characterized by the high quality of its cells, which are mainly class A.

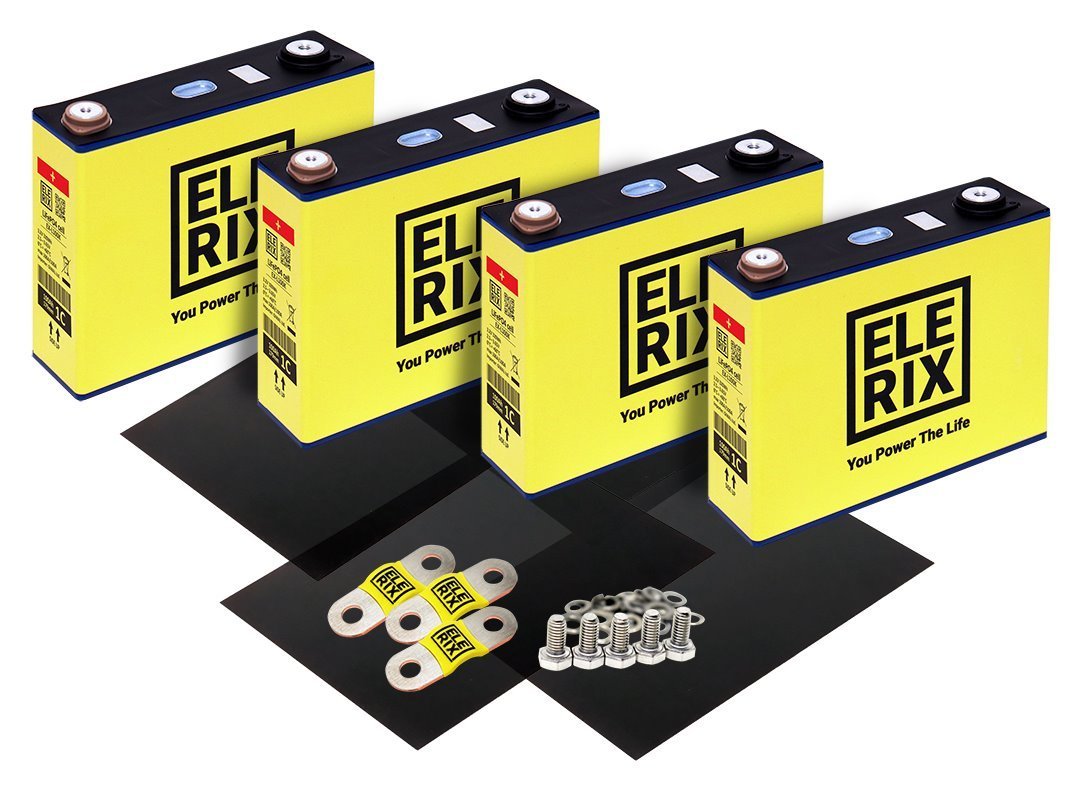

Kit contents

4× ELERIX EX-L100K

1× ELERIX GWL-M6L (M6×12)

3× ELERIX EX-TC50/6

3× ELERIX EX-SEP-KT

ELERIX EX-L100K

Industrial Lithium cell with high energy density and capacity of 100 Ah, is made using LiFePO4 (LFP) technology. The battery is made of high-quality materials and does not contain any toxic chemicals, which guarantees a long service life.

All ELERIX cells are thoroughly tested in Tier 1 factories before distribution, including during production and before shipping. The ELERIX brand is characterized by the high quality of its cells, which are mainly class A.

• High production quality and long service life
• Small and light cells
• Suitable for electric vehicles, light applications, energy storage and solar applications
• Free of toxic chemicals
• Aluminum Housing
• High power up to 1 C (100 A discharge)
• Lithium Iron Phosphate (LiFePO4) Technology
• 3000 cycles & 15 years service life
• Provides high currents at peak discharge (2 C, 200 A)
• Operating temperature 0 to +50 °C (charging)
• Suitable for electric vehicles, light weight applications, energy storage and solar applications

LiFePO4 is a very safe technology, with no risk of spontaneous combustion, fire and explosion. The self-discharge rate is very low. There is no memory effect – the cells can be recharged in any discharge state.

How to connect articles

4 cells, 12 V
Total capacity 1200 Wh / Depth 195 mm / Weight 9.2 kg

See another option for using long and short connectors for the EX-L100K.

Discharge
Test The following graph shows the discharge capacity test + discharge current of 1C in the voltage range of 2.15V – 3.35V.

Operating instructions

• Before using the cell for the first time, the cell must always be charged to full voltage
• The initial charge must be made with a low current at max. 0.5C - i.e. 50 A for a 100 Ah cell
• Cell terminals must be protected from dirt, damage and short circuits
• Cells must be monitored and protected against deep discharge and overcharge
• Charging and discharging must be carried out under supervision

Initial charge
The cells are pre-charged by the manufacturer to a conservation charge (usually 30-50%). Before using the cells for the first time, they need to be charged with a low current. The first charge should not exceed 0.5 C - i.e. 50 A for a 100 Ah cell.

When charging multiple cells for the first time, connect them in parallel, and the charger outputs should be connected to both ends of the parallel cell rows.
We recommend using chargers specifically designed for LiFePO4 cells. The first charge and initial balancing of the entire set is an important step in achieving a long service life.

BASIC SPECIFICATIONS

Technology: Lithium (LiFePO4)
Capacity: 100 Ah
Rated Voltage: 3.2 V
Operating Voltage: 2.5-3.65 V
Maximum Charging Voltage for Initial Charge: 3.65 V
Peak Discharge Current: 200 A (30 s max)
Energy Density: 139 Wh/kg
Dimensions: 173 × 138 × 48 mm
Operating Temperature (Discharge): –20 °C to 60 °C
Operating temperature (charging): 0 °C to 50 °C
Clamp tension force: up to 4 N/m
Weight: 2.3 kg
