ELERIX

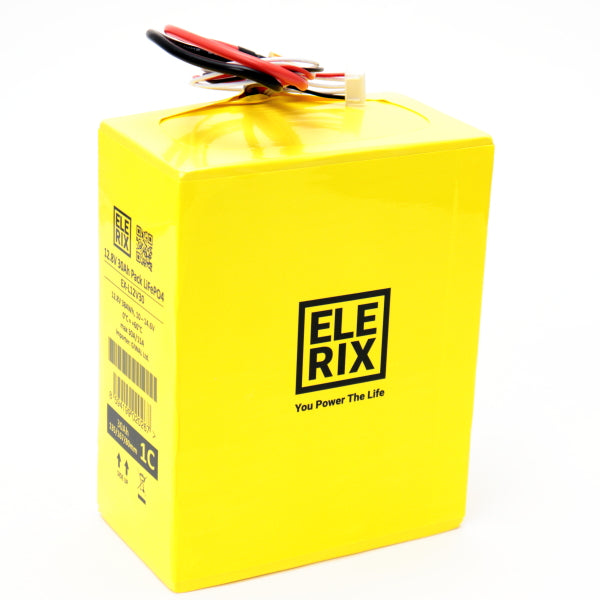

ELERIX 12V 30Ah - EX-L12V30
ELERIX 12V 30Ah - EX-L12V30
Regular price
£99.50 GBP
Regular price
Sale price
£99.50 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- High quality of production for long lifespan
- Small and light
- Suitable for electric vehicles, lightweight
application and energy storage - No toxic chemicals.
- Plastic protective case
- High Energy Density up to 1C, 30A discharge
- Lithium Iron Phosphate - LiFePO4
- 2000+ cycles / 10 years calender life
- Provides high currents at peak discharge (60 A)
- Plus Temperature Range, No-Frost
All other Countries - Please contact us for product prices and shipping costs
LiFePO4 is a very safe technology, with no spontaneous combustion, fire and explosion.The self discharge rate is very low. There is no memory effect – the cells can be recharged at any state of discharge.| Brand: | ELERIX |
|---|---|
| Model: | EX-L12V30 |
| Type: | LFP |
| Capacity: | 30 Ah |
| Size: | 135×167×80 mm |
| Weight: | 3.2 kg |
| Nominal voltage: | 12.8 V |
| Operational voltage: | 10 V - 14.6 V |
| The maximum charging voltage for initial charge: | 12.8 V |
| Maximum discharge current: | 1 C |
| Peak discharge current: | 60 A (max. 30 sec) |
| Operating temperature (discharging): | from -20 °C to +60 °C |
| Operating temperature (charging): | 0 °C to 50 °C |
| Energy density: | 120 Wh/kg |
| Accessories included: | cell wires out - 200mm + XT60 + 5pin balancing connector |
KEY SAFETY FEATURES
|
Items |
Specification |
|
Fire |
No Self-ignition, No Explosion. |
|
Overcharge |
No Explosion. No Fire. |
|
Short-circuit |
No Explosion. No Fire. |
|
Penetration |
Smoke only. No Fire. |
|
Crush |
Smoke only. No Fire. |
|
Overheating |
Stable up to +130°C. No fire. |
|
Non-toxic |
No Cobalt, No Lead-Acid. |
|
Recycling |
+90% Recyclable. |
| Weight (kg) | 32 |
| Height (mm) | 167 |
| Width (mm) | 135 |
| Depth (mm) | 80 |
| Nominal Voltage (V) | 12 |
| Capacity (Ah) | 30 |
| Max discharge current (A) | 60 |
| Optimal discharge current (A) | 10 |
| Max charging current (A) | 30 |
| Optimal charging current (A) | 10 |
------------------------------------------------------------------------------------
