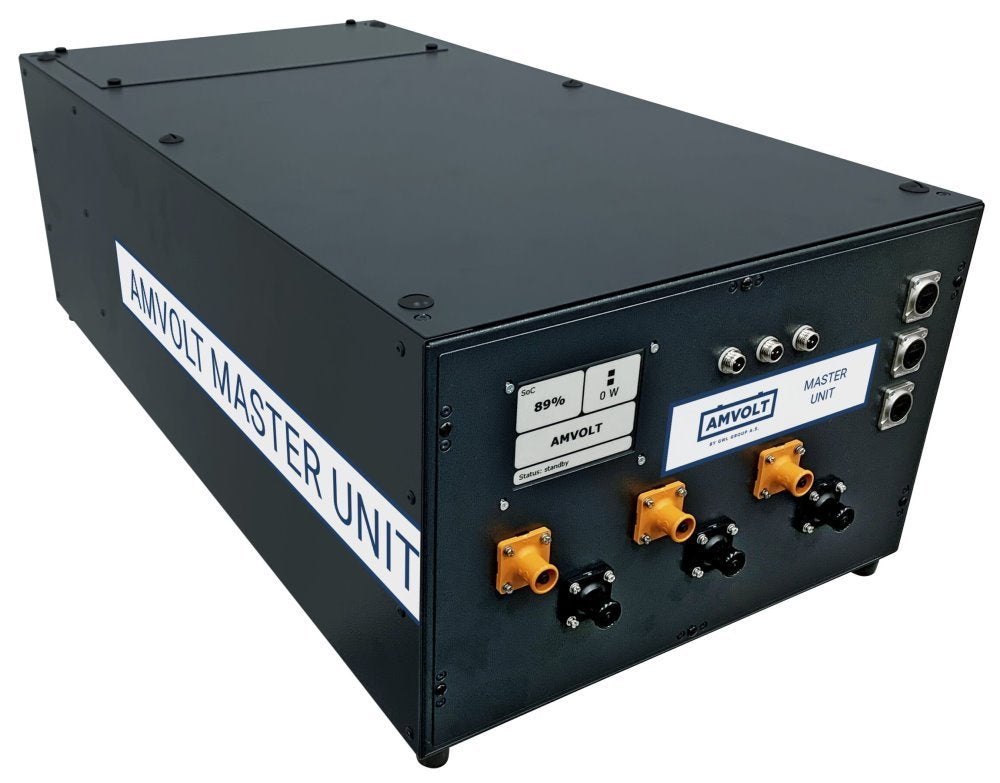

AMVOLT Master Unit

AMVOLT Master Unit

Control unit, master unit, for AMVOLT LV Energy Box 10/14kWh battery modules
, max. 3 modules (Code:SOPGWL0508)

An optional expansion unit is used to connect up to three AMVOLT LV Energy Boxes to the inverter(s). It acts as a superior supervision of individual "slave" energy boxes, which ensures double the security of the entire set. With this unit, you can scale individual 10kWh boxes up to 30.6kWh and 14kWh boxes up to 42.9kWh.

The LAN interface (100/10 Mbps) enables remote administration and surveillance service.

The user can see the standard data in the VRM portal, or in the environment of other compatible LV inverters.

Cables with connectors for the Slave + Master assembly are not included

.

BASIC SPECIFICATIONS

Compatibility: AMVOLT LV Energy Box 10 kWh (AMV-EB-10-LV) and 14 kWh (AMV-EB-14-LV)
Communication: LAN, CAN
Max. number of connectable batteries: up to 3 pcs
Dimensions: 893 × 426 × 285 mm
Color: black

Scalability scheme

Link diagram
